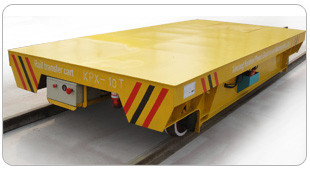

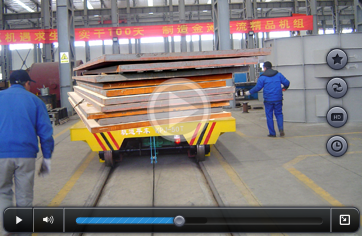

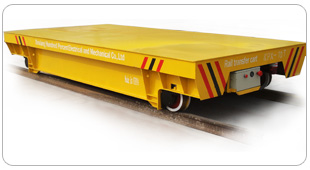

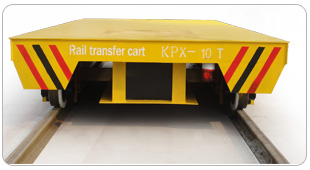

Precise pipe industry apply railway transport cart/die transfer cart
- Tel.: +8615736919601
- Mobile:+86 15736919601
- Fax: +86-373-3020456
- E-mail:info@perfte.com
>> Product presentation
>> Features:
◆ Detachable coil holder
◆ Electrically powered
◆ Up to 300t transferring ability
◆ No limit of working time
◆ Position limit to ensure safety
>> Characters
◆ Resistant to explosion and flammable environment
◆ Can mount dumping device
◆ DC Power
◆ Free maintenance battery
|
Model |
KPX-2t |
KPX-10t |
KPX-80t |
KPX-150t |
|
|
Rated load(t) |
2 |
10 |
80 |
150 |
|
|
Table size(mm) |
Length |
2000 |
3600 |
6000 |
10000 |
|
Width |
1500 |
2000 |
2600 |
3000 |
|
|
Height |
450 |
500 |
800 |
1200 |
|
|
Running speed(min) |
0-25 |
0-25 |
0-20 |
0-18 |
|
|
Motor Power |
1 |
1.6 |
8 |
15 |
|
|
Battery capacity(Ah) |
180 |
160 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
72 |
72 |
|
|
Running Time when full load |
4.32 |
4.8 |
3.6 |
2.9 |
|
|
Running Distance for one Charge(km) |
6.5 |
7.2 |
4.3 |
3.2 |
|
|
Reference Weight(t) |
2.8 |
4.2 |
12.8 |
26.8 |
|
